Integrated PLC and HMI
The high-tech, 4.3-inch touch panel with integrated PLC and expandable I/O offers advanced functions for controlling machinery and other industrial and building automation equipment. The combination of PLC and HMI into a single platform provides many advantages for monitoring and controlling smaller machines, process units and HVAC systems.
Advanced PLC control capabilities
The controller's functions allow stepper motor control, PID control, PWM control, script programming, communication with external systems and much more. A built-in webserver allows remote control and monitoring of the object.
Touchscreen:

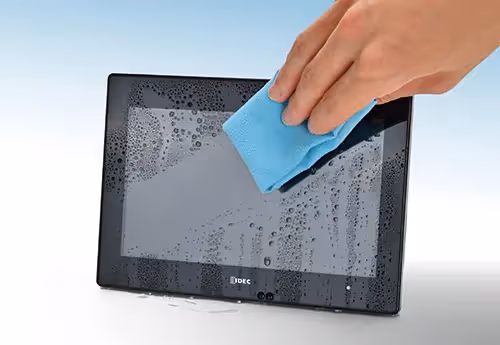

The HMI's advanced capacitive touch panel (PCAP) technology makes the panel shallow and takes up little space behind the board and has a smaller bezel area. The display provides a high degree of visibility, durability and functionality. In addition to being multi-touch, the PCAP panel can be operated with thin gloves.
Highlights:
- 12 or 14 inputs/outputs + expandable by 8
- 2 analog inputs, 2 analog outputs + expandable by 4
- Operating temperature -20 to +55 ̊ C
- Resolution: 480x272 pixels
- PCAP touch panel with glass overlay
- Built-in analog inputs and outputs
- RTD, thermocouples, PID, PWM
- Ethernet/IP communication with scanner and adapter devices
- MQTT communication, direct connection to IoT server without gateway
- Webserver, remote access, FTP, Email, mobile app
