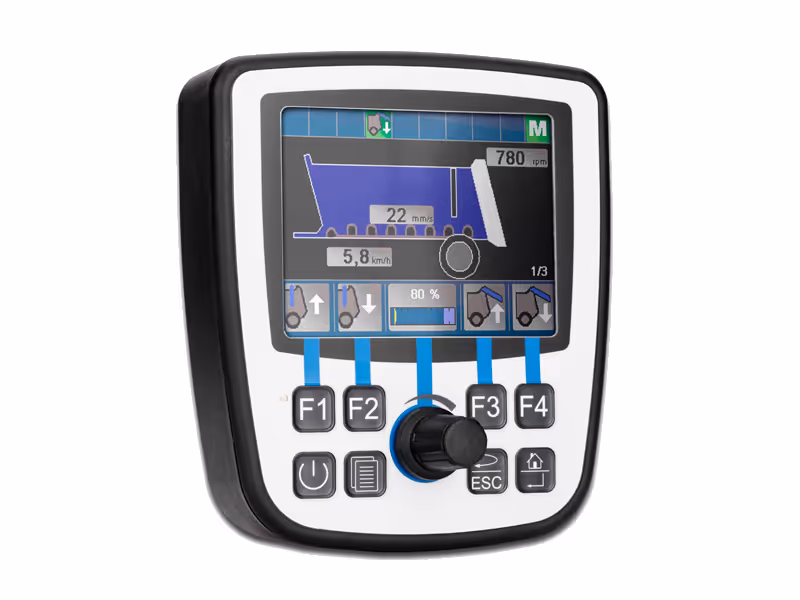

Because of its compact and rugged design, the JVM-104 panel is ideal for any mobile work machine. It has a powerful built-in controller that can be upgraded with additional I/O, Ethernet and USB. The panel has an illumination sensor to adjust the brightness of the display to the current conditions.
- Panel with controller 32-Bit-processor, 500 MHz
- Expandability
- Display 3.5"-TFT, LED-Backlight
- Resolution 320 x 240 Pixel (QVGA); 350 cd/m² (reg. brightness)
- Programming: graphics JetViewSoft, logic: IEC-61131-3 STX
- CAN communication capabilities: CANopen®, SAE J1939, ISOBUS 11783
- Ethernet
- USB
- RS232
- Power supply 8 - 32 V DC
- Maximum total current 12 A
- Operating/storage temperature -20 to +65 °C / -40 to +85 °C
- IP65 protection from the front and back
- Dimensions 105 x 120 x 30 mm
