MicroSmart FC6A controllers

FC6A

MicroSmart FC6A is a PLC with a wide range of applications in machinery and industrial installations of all sizes.

Buy in the webshop
Ask about this product
Your message has been sent!
Oops! Something went wrong!

The MicroSmart FC6A series has two types of central units: Plus and All-in-One. The Plus type has two RJ45 Ethernet ports, built-in webserver functions and expandable up to 2060 I/O, while the All-in-One type has one built-in serial port and one RJ45 Ethernet port and is expandable up to 520 I /O.


IDEC MicroSmart FC6A Plus controllers exceed the capabilities of micro controllers! With a capacity of 2060 I/O, this PLC can control large machines or entire small manufacturing plants, providing greater capabilities for even the most demanding applications. MicroSmart FC6A Plus processors now support the EtherNet/IP™ protocol. With EtherNet/IP™ scanner functionality, the FC6A Plus can connect to, monitor and control any I/O, drives or other intelligent automation devices using this popular industrial protocol. In addition, the FC6A Plus can be configured as an EtherNet/IP™ adapter, allowing it to interact with other peer and supervisory systems, such as other PLCs or HMIs. The Plus units also have the ability to communicate with the data cloud using the MQTT protocol.

MicroSmart FC6A All-in-One CPUs are powerful PLCs with up to 520 digital I/O and 126 analog I/O. Three models are available, varying in size, each with 24 V DC or 100-240 V AC input power. The 16 I/O model has 9 inputs and 7 relay or transistor outputs. The 24 I/O model has 14 inputs and 10 relay or transistor outputs. The 40 I/O model has 24 inputs and 16 relay or transistor outputs. Each model also includes an integrated 0-10V DC analog input. The 16 and 24 I/O models can accommodate one insertable extension (cartridge), while the 40 I/O model can accommodate two such cartridges.

Selected features:

  • EtherNet/IP (Plus)
  • MQTT (Plus)
  • Modbus TCP and RTU
  • WindEDIT app for iOS and Android
  • Bluetooth
  • Built-in SD slot
  • Data collection on SD card
  • Webserver
  • FTP
  • RJ45 Ethernet ports
  • BACnet/IP (Plus)
  • SAE J1939 CPU (All-in-One)
  • Operating temperature -25 to 65 degrees Celsj.

Central Plus Units:

All-In-One Central Units:

No items found.

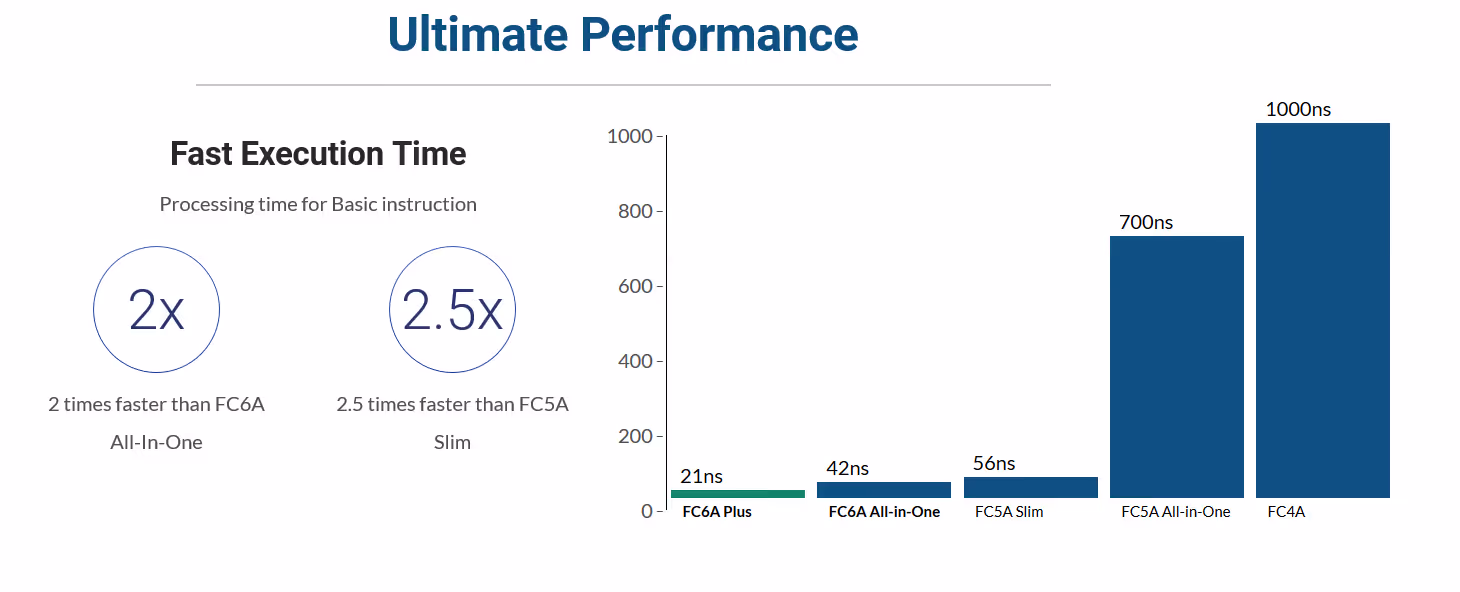

The FC6A controllers are fast and powerful and the Plus CPUs will work well on machines that require lightning-fast response times.

The central unit as well as all modules can be updated by uploading firmware - you always have access to all new features

iOS and Android apps. Free apps allow remote monitoring and control via a mobile device. You can read and load the program, monitor statuses and data. You can upload data to iCloud, Google Drive, Dropbox, etc. It is also possible to manage data logged on the SD card and even load new firmware.

No items found.

No items found.

Frequently asked questions

No items found.
